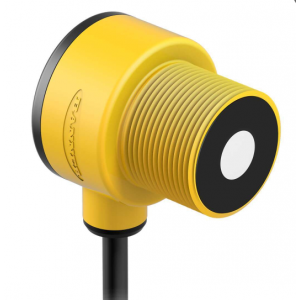

邦納超聲波傳感器T30UXIA
邦納傳感器
T30UX Series w/ Analog Output
Range: 100 mm - 1 m; Input: 10-30 V dc
Analog Output: 4-20 mA
2 m (6.5 ft) Cable
零部件號： 80479
Cable Length (m)2
PowerDC
Sensing BeamUltrasonic
NEMA / UL Type RatingNEMA 4X
IP RatingIP67
Sensing Mode (General)Proximity
Sensing Mode (Detailed)Time of Flight
Housing StyleBarrel
Device TypeSensor
Primary Housing MaterialPBT
Input OutputAnalog
ConnectionFlying Leads
Analog Output Configuration4-20 mA
Max Sensing Distance (mm)1000
Minimum Sensing Distance (mm)100
Power Supply10-30 V dc
AdjustmentsTeach Button
Number of Pins4
Max Operating Temperature (°C)70
Min Operating Temperature (°C)-40
Minimum Response Time (ms)45
Barrel ThreadM30
Ultrasonic Frequency (kHz)224
Feature: Remote TeachYes
Feature: Clear Object DetectionYes
Application: UltrasonicYes
EPLAN StatusPublished
EPLAN Original Sent Date12/08/2021
