CMP六角防爆堵頭（757-M20系列）

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭

CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭

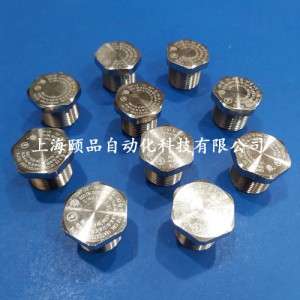

英國CMP六角防爆堵頭（CMP 757 Hexagon Head Stopper Plug）

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

757 Hexagon Head Stopper Plug, Globally Approved,

Explosive Atmosphere Cable / Conduit Accessory

• Provides means of blanking unused cable entries

• Temporary or permanent

• General purpose / industrial version available

• Equipment interface ‘O’ ring seal available

• Nylon Ex e only version available (-20C to +60C)

• -60C to 200C (metallic versions)

• Globally marked, IECEx, ATEX, cCSAus & UL

Available brass, nickel plated brass, aluminium, stainless steel & nylon

(EX e Nylon product not UL orcCSAus certified)

Description	Allen key recess	metallic			Non-metallic
Description	Allen key recess	Ex "d"	Ex "e"	Industrial	Ex "e"	Industrial
747 Recessed Non-Tamper Proof Type 'A'	Y	Y	Y	Y	Y	Y
747 Recessed Tamper Proof Type 'B'	Y	Y	Y	Y	Y	Y
757 Hexagon Head	N	Y	Y	Y	Y	Y
757 Hexagon Head c/w 'O' ring seal	N	Y	Y	Y	Y	Y
767 Dome Head	Y	Y	Y	Y	Y	Y
767 Dome Head c/w 'O' ring seal	Y	Y	Y	Y	Y	Y

HOW TO ORDER
e.g. 747 – D – A – M – 3 – 1
= Dual Certified Ex d & Ex e- Type A – M25 – Aluminium

For Tamper-Proof Type B Stopper Plugs please substitute the letter A with the letter B in the Ordering Reference list opposite.

Other Thread Variations are available on request.

For further information on ordering please contact a member of the CMP team.

Ex e Nylon product not UL or cCSAus certified.

To view technical information relating to explosive atmospheres click here.

For under / oversized armour wires click here

To view technical information relating to cable glands visit here

If you require further information, please contact EPIN AUTOMATION

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

Ordering Reference	Thread Size	Minimum Thread Length	Across Flats 'A'	Across Corners Diameter	Protrusion Length 'C'
757DM1	M16 X 1.5	15.0	22.0	24.2	5.0
757DM2	M20 X 1.5	15.0	24.0	26.4	5.0
757DM3	M25 X 1.5	15.0	30.0	33.0	5.0
757DM4	M32 X 1.5	15.0	36.0	39.6	5.0
757DM5	M40 X 1.5	15.0	46.0	50.6	5.0
757DM6	M50 X 1.5	15.0	55.0	60.5	5.0
757DM7	M63 X 1.5	15.0	70.0	77.0	5.0
757DM8	M75 X 1.5	15.0	80.0	88.0	5.0
757DM9	M90 X 2.0	24.0	99.0	108.9	5.0
757DM10	M100 x 2.0	24.0	108.0	118.8	5.0
Dimensions displayed in millimeters unless otherwise stated

TECHNICAL ILLUSTRATION

CMP六角防爆堵頭（757-M20系列）示例圖14

CMP防爆格蘭（CMP ATEX PLUG）

Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥

CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司
