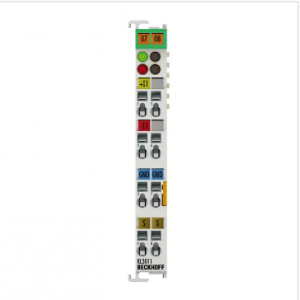

倍福KL3011 | Bus Terminal, 1-channel analog input
點擊圖片查看原圖
品牌： 倍福
品牌： 倍福
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2023-07-28 15:43
瀏覽次數： 138
詢價
店鋪基本資料信息
  • 倍福PLC服務商
  • 聯系人劉芳香(女士) 銷售經理
  • 會員 [當前離線] [加為商友] [發送信件]
  • 郵件405036587@qq.com
  • 電話13397493317
  • 手機13397493317（微信同號）
  • 地址上海市寶山區富聯一路98弄6號

 產品詳細說明

Technical data KL3011
Number of inputs 1
Power supply via the K-bus
Signal current 0…20 mA
Technology differential input
Internal resistance 80 Ω + diode voltage 0.7 V
Common-mode voltage UCM max. 35 V
Conversion time ~ 1 ms
Resolution 12 bit
Measurement error/ uncertainty < ±0.3 % (relative to full scale value)
Surge voltage resistance 35 V DC
Electrical isolation 500 V (K-bus/signal voltage)
Current consumption power contacts – (no power contacts)
Current consumption K-bus typ. 60 mA
Bit width in the process image input: 1 x 16 bit data (1 x 8 bit control/status optional)
Weight approx. 70 g
Operating/storage temperature 0…+55 °C/-25…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Approvals/markings CE, UL, ATEX, IECEx, DNV GL
Pluggable wiring for all KSxxxx Bus Terminals
Ex marking ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
Housing data KL-12-8pin KS-12-8pin
Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²		 s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG s*: AWG 28…14,
st*: AWG 28…14,
f*: AWG 26…16		 s*: AWG 28…16,
st*: AWG 28…16,
f*: AWG 26…16
Stripping length 8…9 mm 9…10 mm
Current load power contacts Imax: 10 A
