Features and Benefits
•Low operating costs and high inventory flexibility due to the versatility provided by one valve designed to operate in three pressure classes
•Standards compliance ensured by a design that meets ASME Section III, Class 1, 2, and 3 design codes
•Investment cast body that results in a high Cv ensured by a design that results in a contoured flow path, smooth flow path and high Cv
•Increased durability via a one-piece low profile, investment cast body/yoke assembly that results in smooth flow passages
•Lower maintenance time made possible by T-head stem design that enables easy changing of the disc
•Functional qualifications per pressure class 1878 (intermediate) requirements
•Broad application versatility provided by a choice of three disc styles, including: quick-open, parabolic and cage type discs
Size Range:
•NPS 1/2 to 2
•DN 15 to 50
Pressure Class Range:
•600 to 1878
•PN 110 to 325
Seating Material: Metal
在線客服
企業(yè)微信
點(diǎn)擊圖片查看原圖
[VIP第3年] 指數(shù):8
通過認(rèn)證

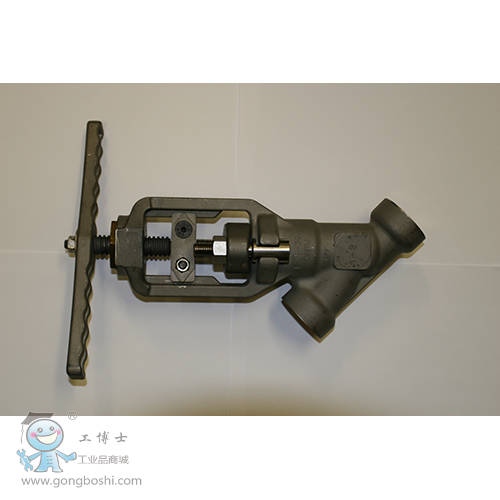

![Flowserve-Anchor-Darling-Y-PatternGlobeValves-1878[1]](http://www.rz-tex.com/file/upload/201704/12/16/16-27-58-58-24668.png)
