26-1012-34005, 26-1062-34005, 26-1013-34005, 26-1063-34005

26-1015-34005, 26-1065-34005, 26-1016-34005, 26-1066-34005

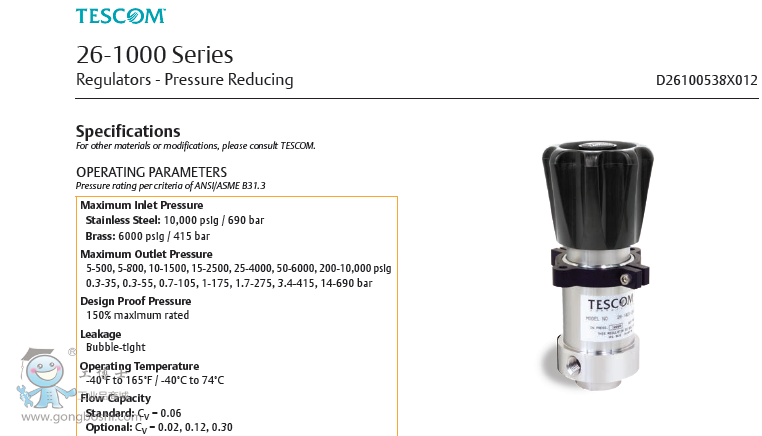

TESCOM 26-1000 Series controls pressures up to 10,000 psig / 690 bar. This pressure reducing regulator offers standard venting providing decreased outlet pressure. The 26-1000 Series has an interchangeable spring and sensor for product
versatility. The low torque handknob is easy to adjust.

Applications
• Test equipment
• Calibration stands
• Production equipment

Features and Benefits
• Can be easily converted to seven different outlet pressure ranges
• Available with captured venting
• Numerous inlet and outlet porting options
• Available in Brass or Stainless Steel
• Unbalanced stem provides positive shut-off
• Safety and reliability of piston sensor
• Excellent sensitivity through a wide range of pressure settings
• Vents to zero psig / bar in all pressure ranges
